Installing a Battery
Improve utilization of your existing infrastructure with SPAN,
the industry standard in load and energy management.
Residential load growth
(McKinsey, Grid Strategies LLC.)
Unlocking electrification at scale
PowerUp is an integrated overcurrent protection feature in every SPAN Panel that enables seamless integration of high-current appliances (like EV charging and electric HVAC) in homes on their existing service size.
Unlocking electrification at scale
PowerUp is an integrated overcurrent protection feature in every SPAN Panel that enables seamless integration of high-current appliances (like EV charging and electric HVAC) in homes on their existing service size.

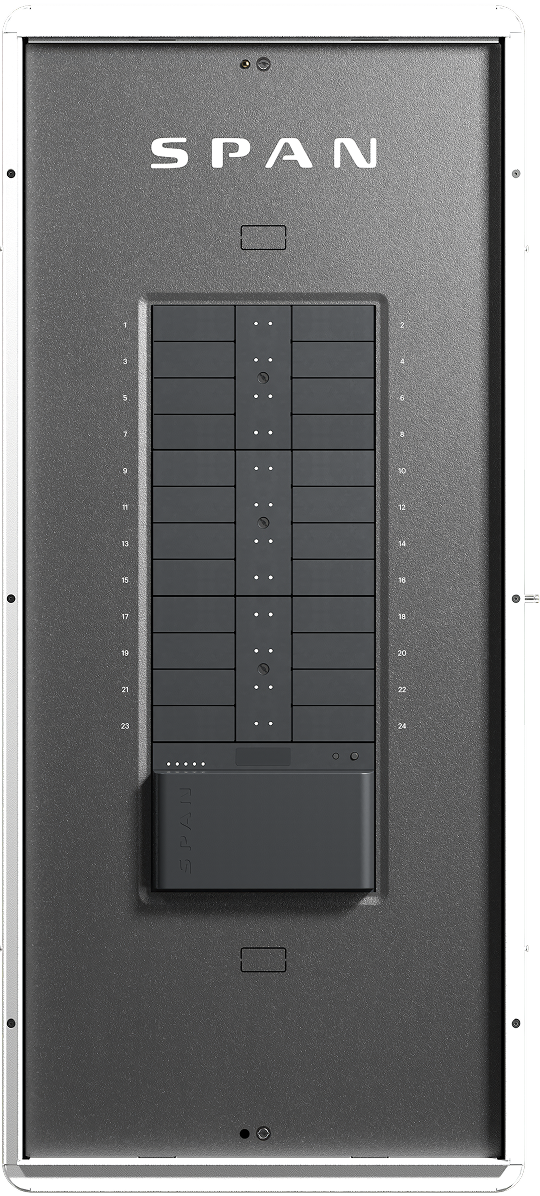

SPAN Edge
Intelligent Service Point™
Provides the capacity to completely electrify homes for residents that want to add heavy loads above their service rating. SPAN Edge is designed to be installed in 15 minutes by a technician.
Comes pre-installed with Energy Management System software, SPAN PowerUp, allowing utilities to manage service setpoints during peak load events for maximum grid flexibility.
Electrical
- Supports any service 200A or less
- 125A parallel service panel
- 8 to 16 circuit spaces
- 3-wire single phase homes only (120/240V)
- Compatible with standard 1” breakers
(SquareD HOM, Siemens, Eaton, GE/ABB) - Compatible with Form 2S utility meters
Environmental
- Outdoor, IP54 rated
- -40°C to 70°C Outdoor Ambient
- Up to 3000m elevation (9800 ft)
Installation and Certifications
- Installs in 15 minutes by a technician
- Surface mount with wall mount bracket
- UL 67, UL 916, UL 414, UL 3141, UL 1277
Whole-home
Energy Management
Every SPAN Panel and SPAN Edge comes pre-installed with our patent pending energy management system (EMS) software, SPAN PowerUp. PowerUp allows distinct power management setpoints to more effectively manage loads during peak use events.
- Firm Service Rating is set by SPAN Authorized Installers and conforms to utility service size
- Dynamic Service Rating is set by utility partners and is a temporary service rating which is lower than the Firm Service Rating
- Allows control of residential loads for a group of one or more participating homes during a set time period
- Multiple use cases for system balancing and transformer loading
SPAN delivers lower system costs with the added benefit of enhanced resiliency, flexibility and customer experience.
Without SPAN
With SPAN and SPAN PowerUp
$19,000
$3,500
$8,500 - 10,500
~$14B
~$6.3 - 7.8B
1 SPUR, Policy Brief, May 2024, “Solving the Panel Puzzle: Avoiding and streamlining electric panel and service upsizing to accelerate building decarbonization”
2 75% cost reduction in service upgrade, transmission, and distribution system cost with SPAN from utility investment estimates and build cost statistical averages.
3 NV5 & Redwood Energy, May 2022, “Service Upgrade for Electrification Retrofits Study: Final Report”
4 California Public utilities Commission, Impacts Study, May 2023, “Electrification Impacts: Bottom-Up Load Forecasting and System Level Electrification Impacts Cost Estimates”
Flexible grid-edge solutions
SPAN provides >30x more electricity usage data than a traditional “smart” electric meter; this data can support offerings such as end-use pricing and load disaggregation, to enhance customer engagement.
MAIN 32
MLO 48
.png)
MAIN 40 +MID
-1.png)
MLO 24
MAIN 16 +MID
Intelligent Service Point

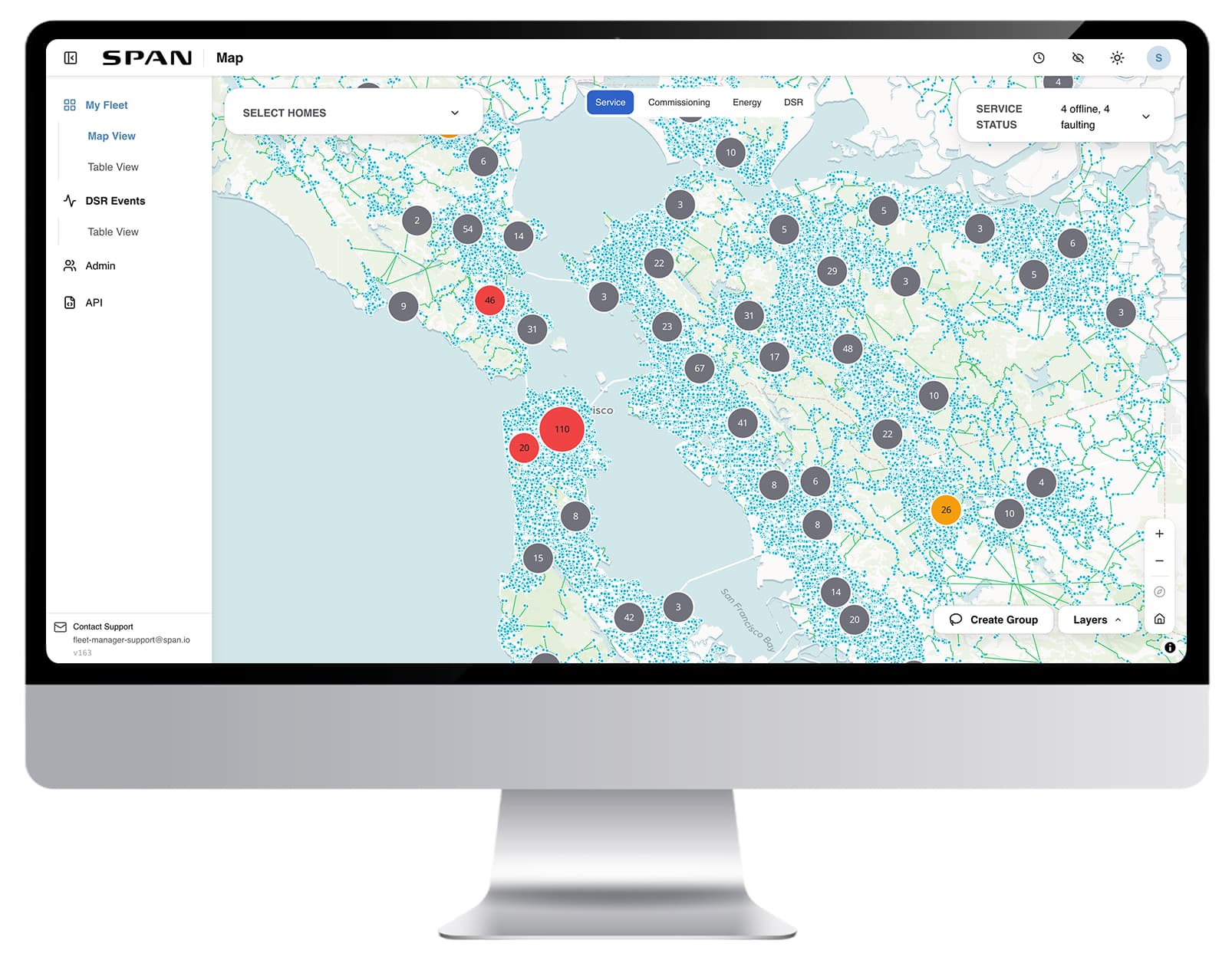

SPAN Fleet Manager
SPAN Fleet Manager provides a real time energy dashboard of SPAN homes in your service area, with unmatched ability to manage your territory.
Set Dynamic Service Ratings for PowerUp management, monitor fleet wide consumption data, and better prepare for peak use time periods and adverse weather conditions.
Deliver a superior experience
SPAN is a superior offering for customers in your service area, unlocking whole home energy visibility + control while providing ongoing cost savings and insights.
- Best-in-class homeowner experience
- Whole-home energy-saving insights
- Integrations with Tesla and Mitsubishi Electric
- Seamless compatibility with existing and planned solar + storage systems for greater participation in VPP and DERMS programs
Deliver a superior experience
SPAN is a superior offering for customers in your service area, unlocking whole home energy visibility + control while providing ongoing cost savings and insights.
- Best-in-class homeowner experience
- Whole-home energy-saving insights
- Integrations with Tesla and Mitsubishi Electric
- Seamless compatibility with existing and planned solar + storage systems for greater participation in VPP and DERMS programs
Get more from your existing infrastructure
Get in touch with SPAN today to learn about how we can help reduce infrastructure upgrade costs.
